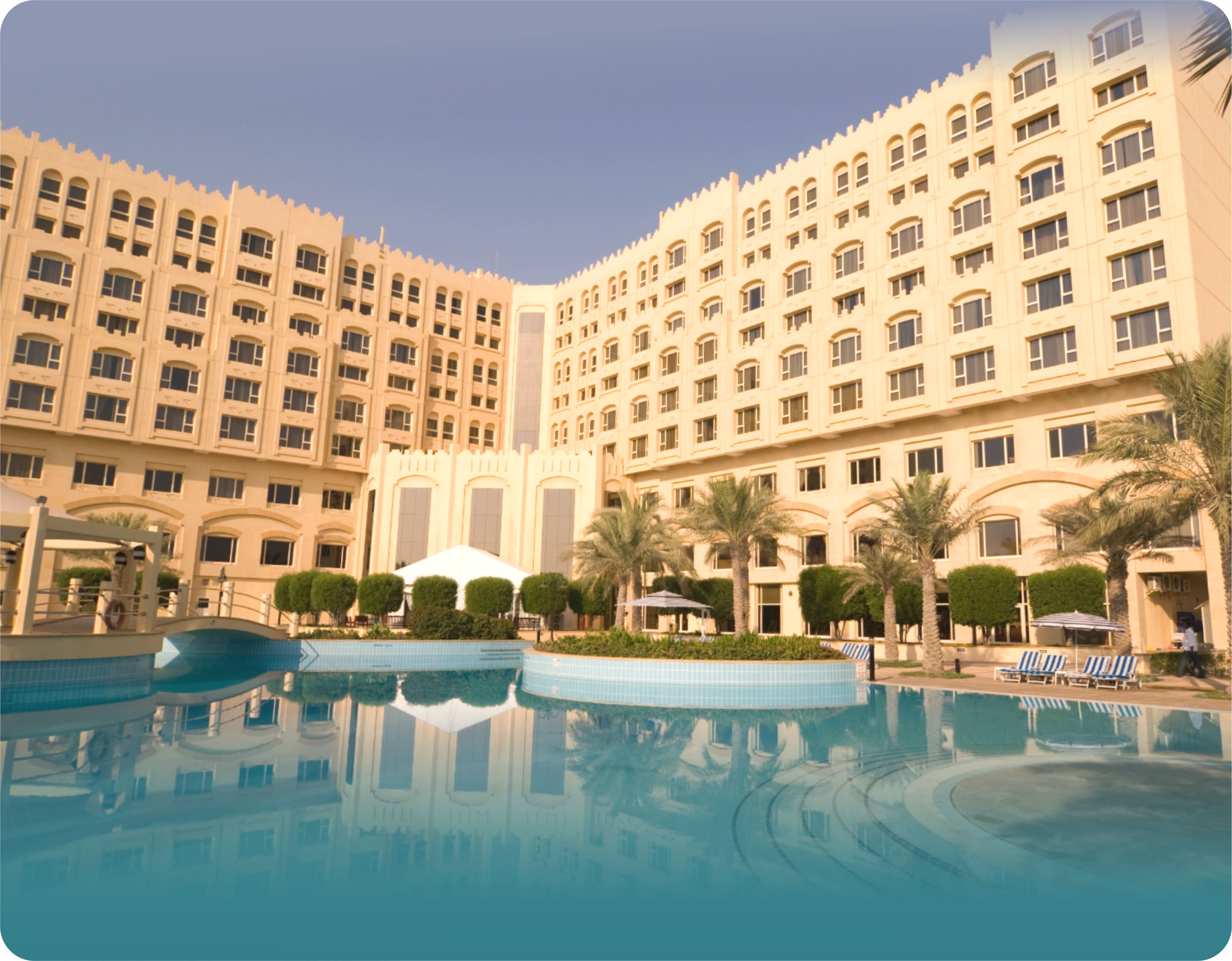

HVAC System for Hotels & Resorts
- Assures Pleasant Indoor Conditions
- Energy Efficient
- AI Based Utility Management
- Capitol Cost Efficacy
- Easy Maintenance
Pujnik Technologies offers the custom designed & reliable, energy efficient & easy to maintain & operate HVAC System for Hotels & Resorts.
Pujnik HVAC System delivers the pleasant indoor conditions in all three main areas of a hotel-Guest Rooms, Public Areas like Lobby, Restaurants, Retail Shops & Back of the House Areas.
By regulating a hotels indoor environment , our HVAC System helps to create a more comfortable and healthy atmosphere for guests.
As efficient HVAC system is almost transparent end result, we work out from designing to execution ensuring full integration of the mechanical design with interior design. In terms of this integration, we lay special attention to Working out the part loads as the part load is the most prevalent condition in the hotels and the location of air-conditioning unit, guest room fan coils, uniform flows in public areas.
We offer different approaches to offer a Customized Solution for each of the Hotel property to deliver Hot & Cold Temperatures, Low Noise Pollution, Reliable & Expert Maintenance, to Variable Room Temperatures.
Basics of OR:

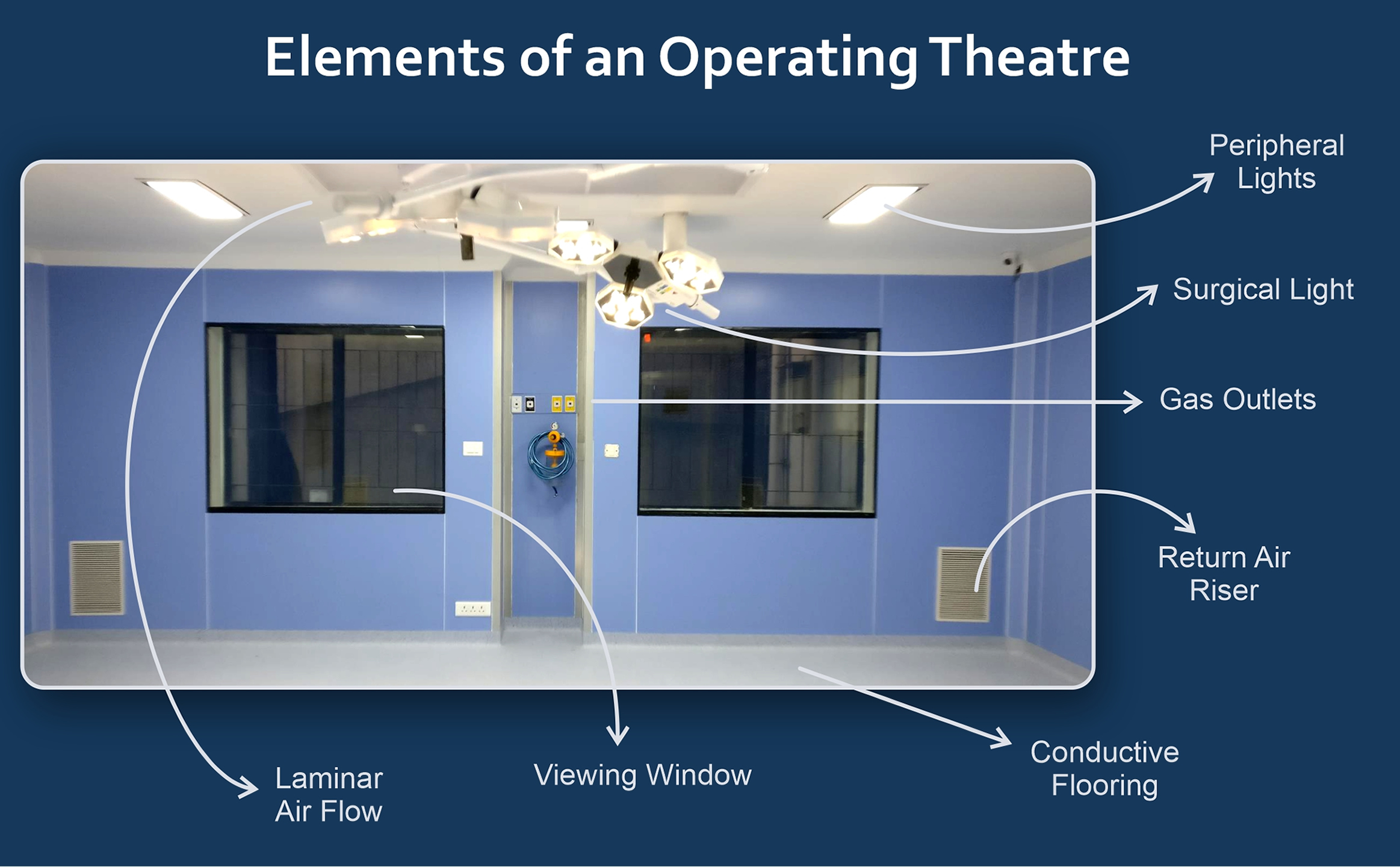

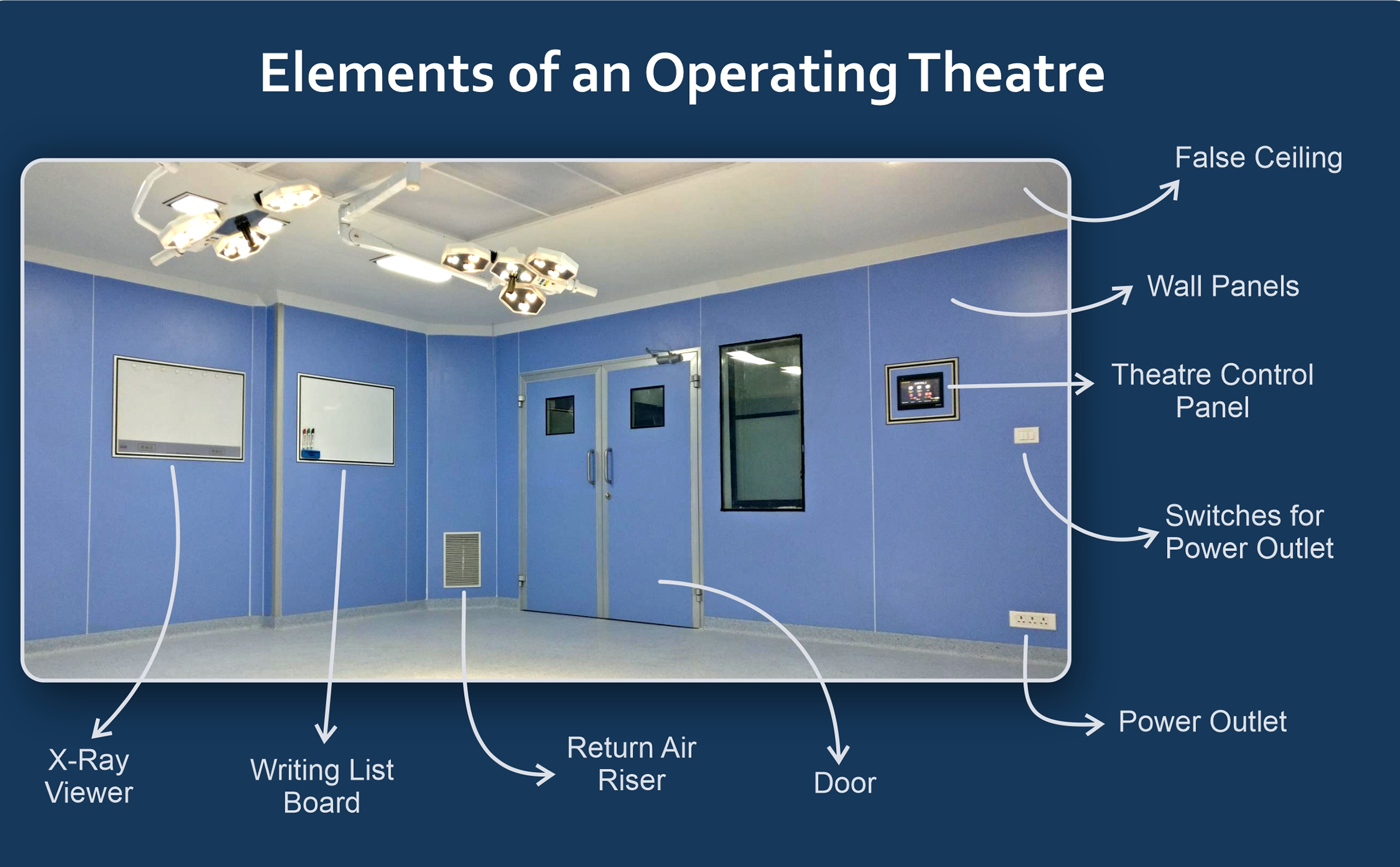

An Ideal Operating Room
Must meet regulatory guidelines of sterile and infection-free environment
Appropriate Material of construction for Wall cladding, False ceiling & Flooring for better control over dust & microbial contamination.
Clean and Flexible design to facilitate current Technology and Equipment Integration.

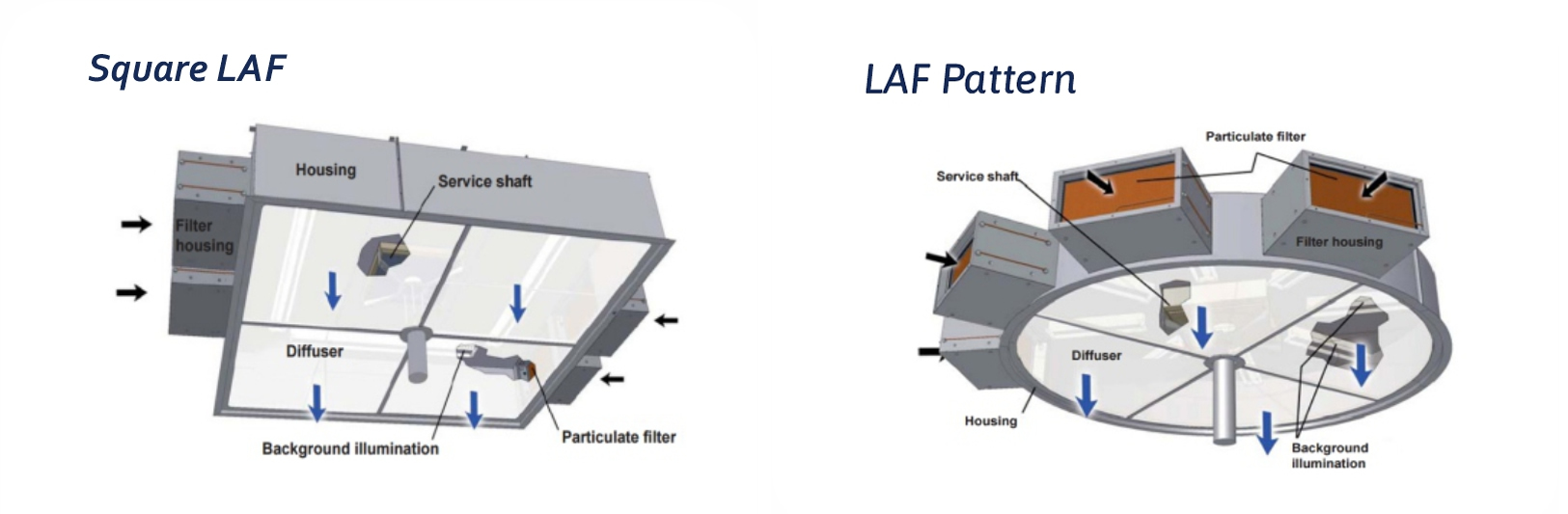

Well designed Laminar Air Flow & HVAC System is a key factor for appropriate air quality, air velocity and dir changes to achieve desired clean room class.

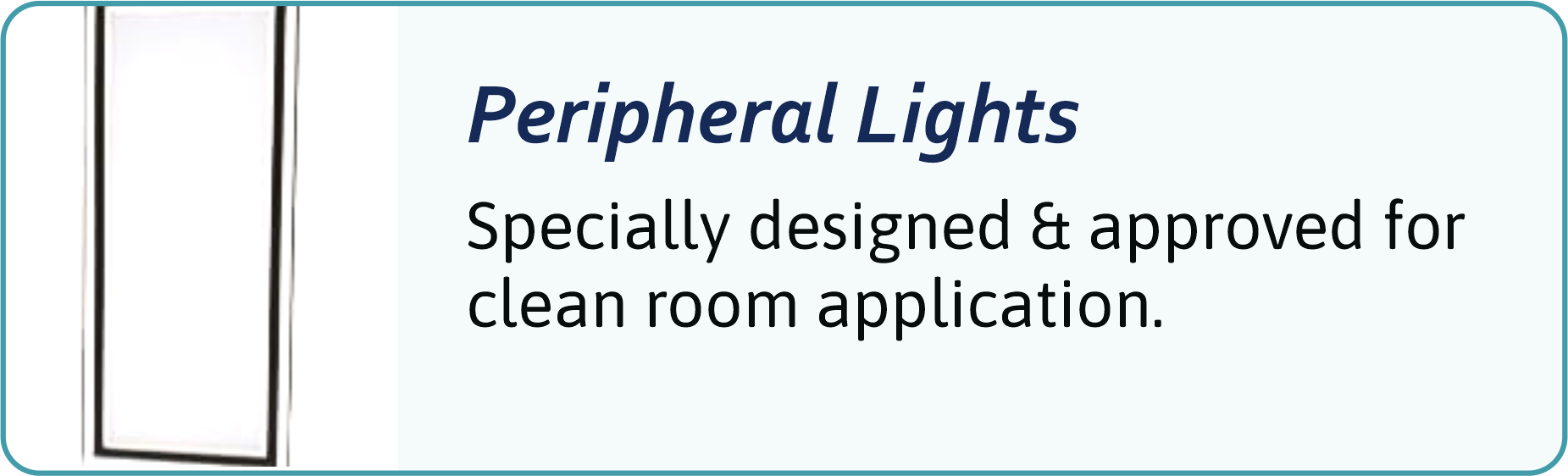

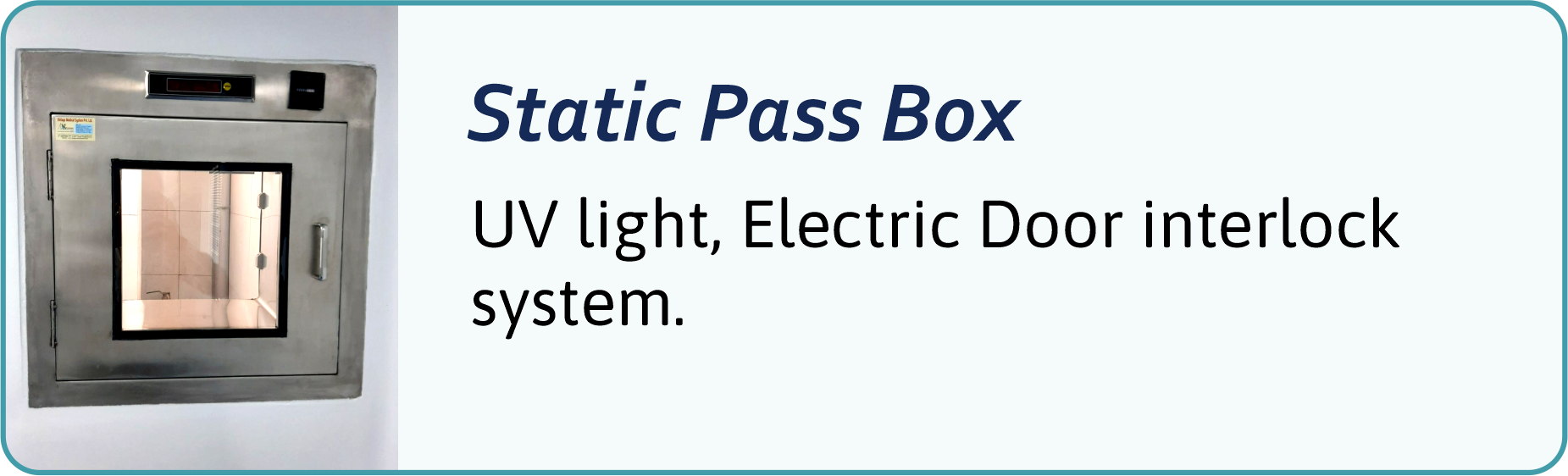

Space planning & proper placement of various accessories helps ease of accessibility and Provision for flush integration of necessary Peripherals.
Wall Cladding & False Ceiling
Anti-Static & Conductive Flooring: Seamless antistatic conductive flooring with 2 mm thickness (or more) with perfectly curved flash covings.
Conductive synthetic seamless FRP (Fiberglass reinforced plastic) to cover the operation theatre floor with overall finished thickness of 6 mm including corner coving up to bottom of the wall panel.

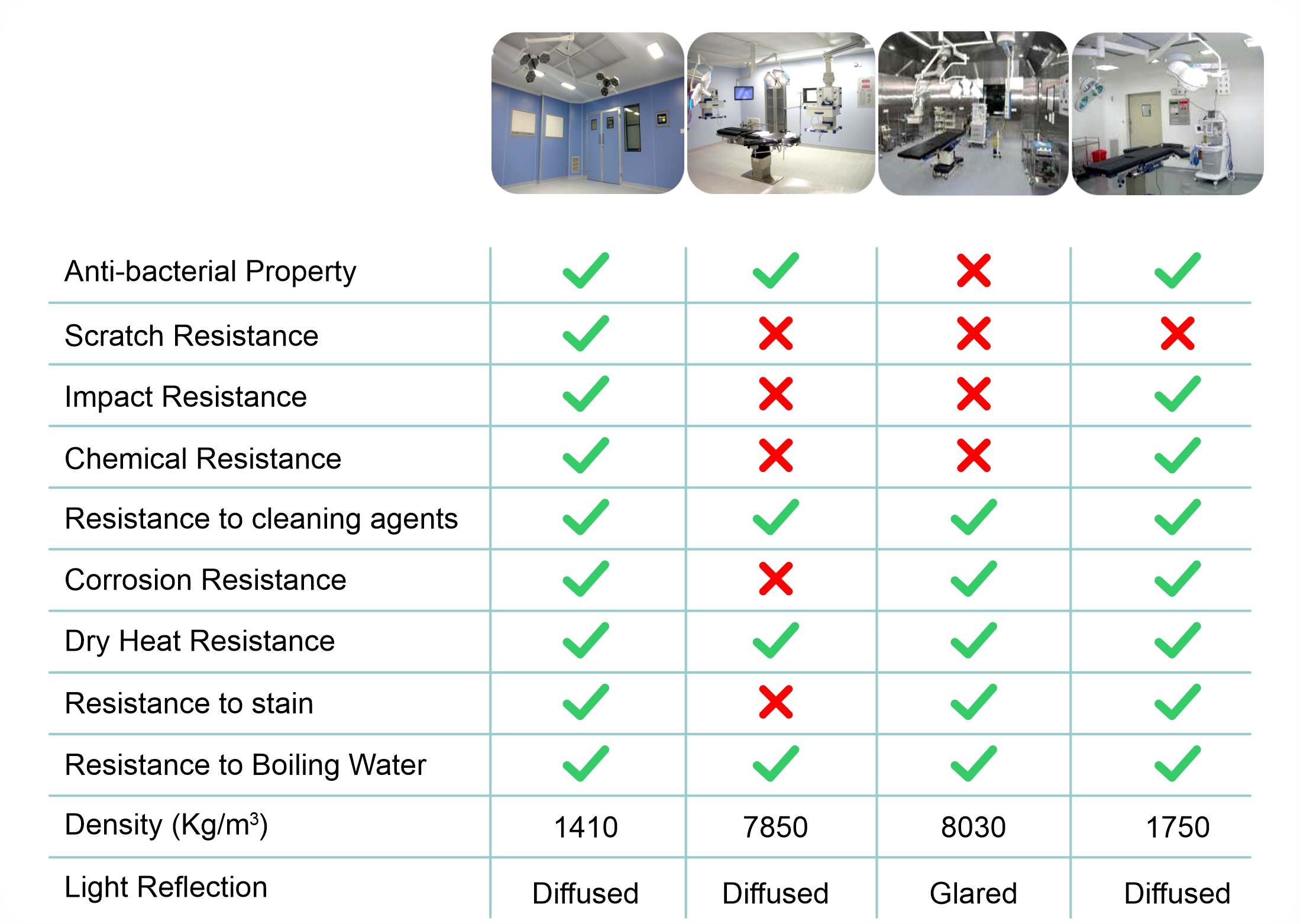

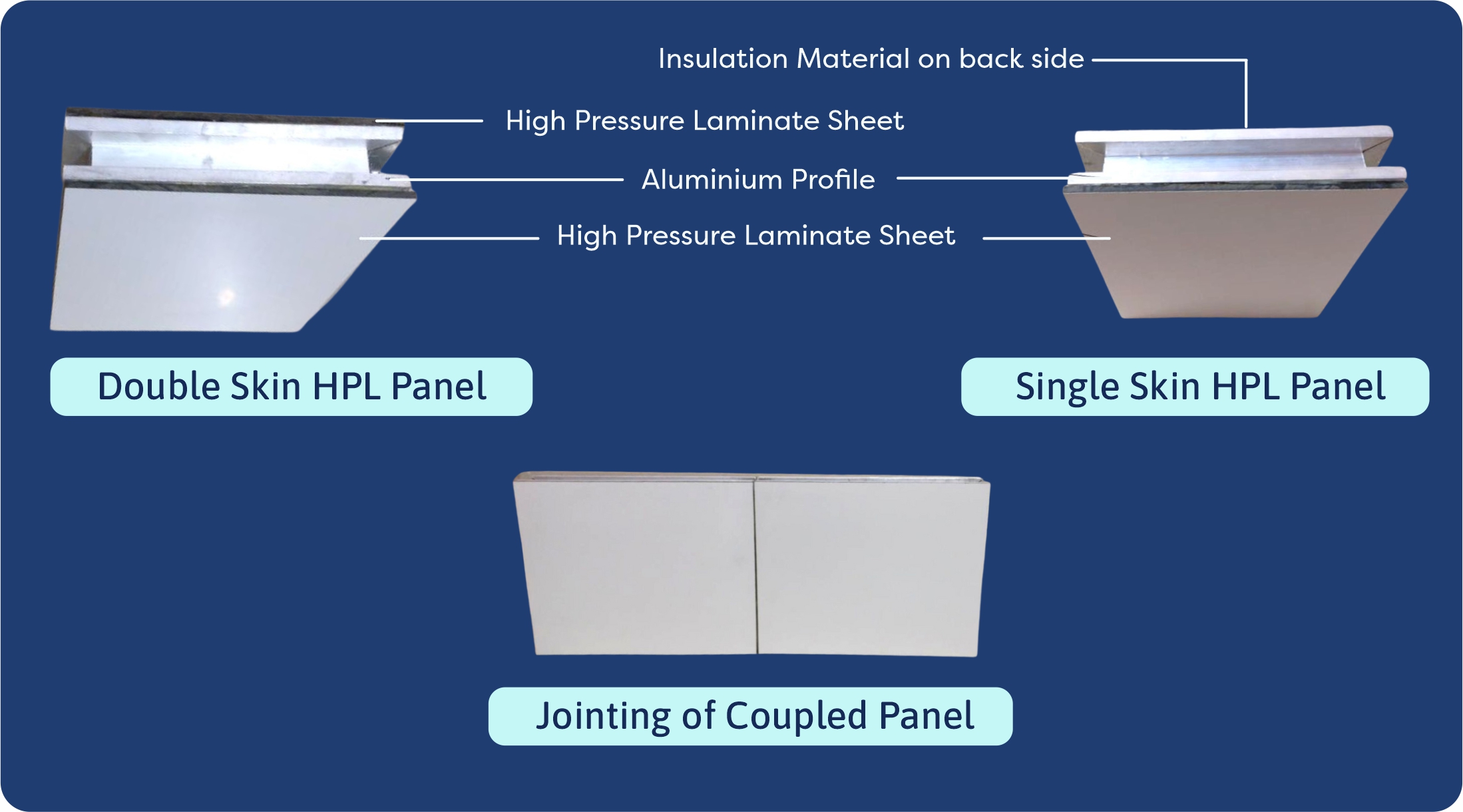

Wall Cladding & False Ceiling Material
MVAC:

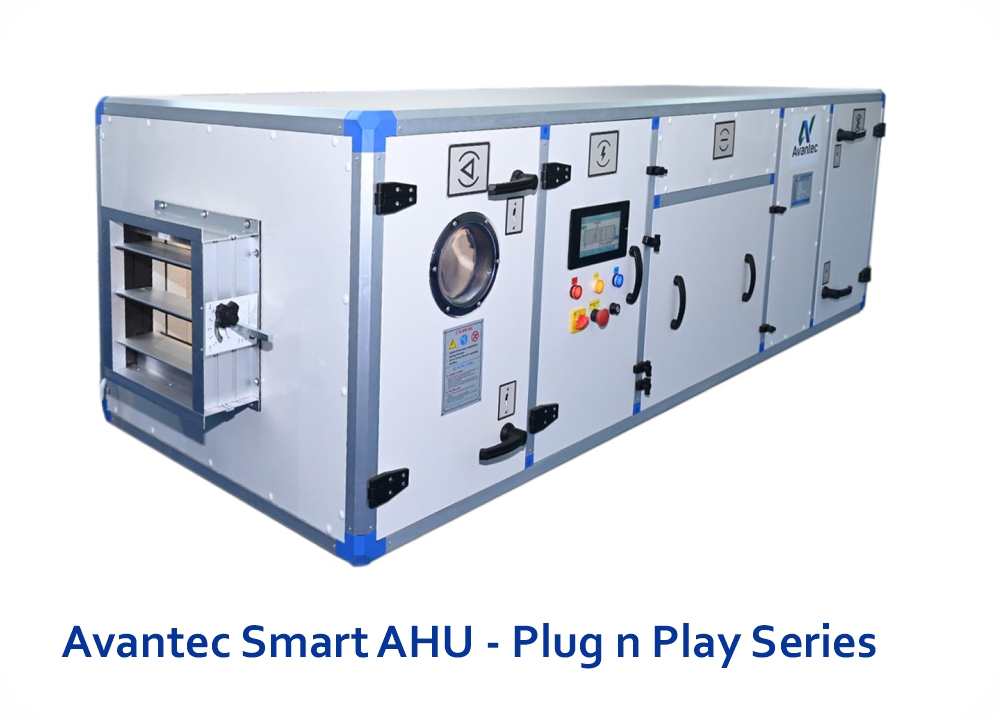

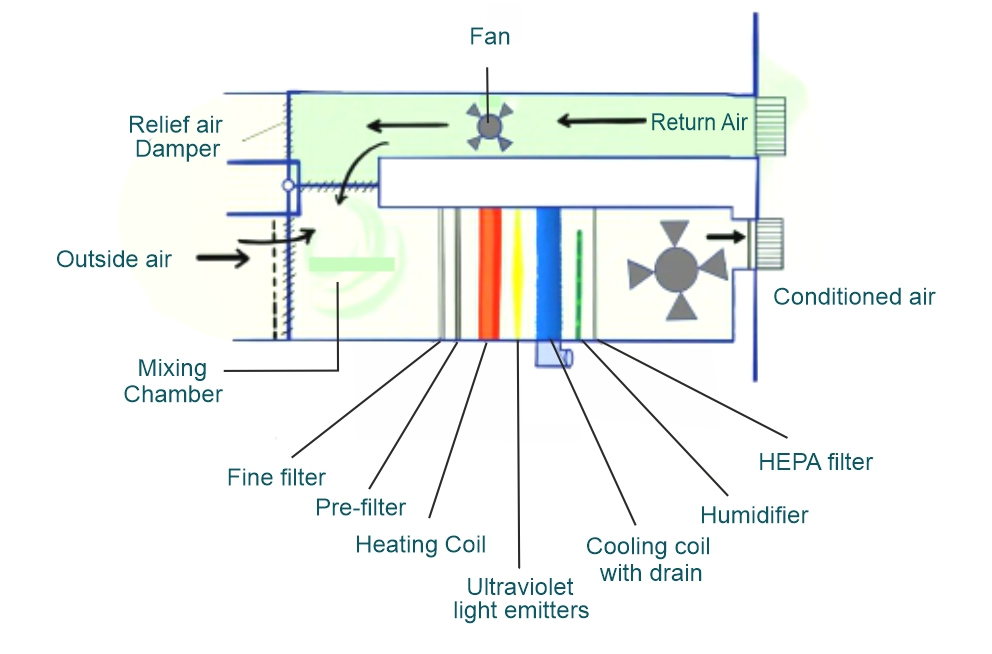

The Heart of the System is custom designed Air Handling Units-both Chilled Water & DX. AHUs are designed having both the Cooling & Heating Coils- for Cooling & Dehumidification. Dehumidification process is carried thru a dedicated energy effcient Heat Pump. Cooling needs are achieved thru Buildings Chiller System or thru a Stand Alone VRF based Condensing Units.
OT AHUs are provided with Mixing Box for the return Air & the Fresh Air Intake having Motorized Dampers. AHUs have Filtration thru Pre & Fine Filters. To exhaust the stale air a dedicated exhaust arrangement is provided. Return Air Grills in SS Construction are provided with Dampers.

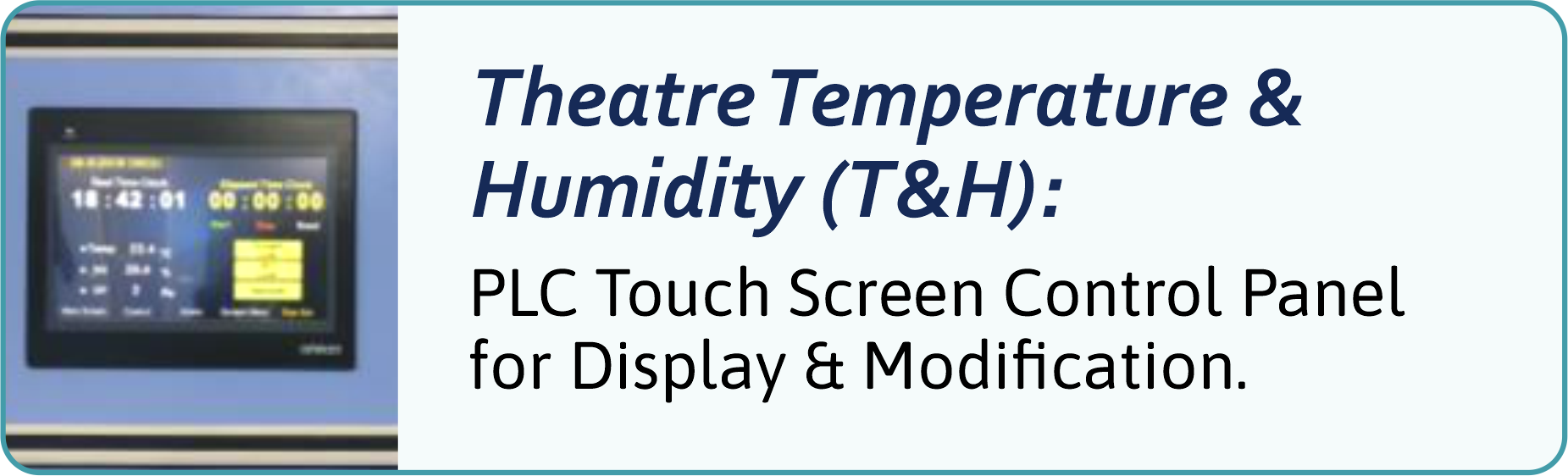

PT precise Designing ensures required Temperature and RH Levels and Ventilation Control for the Comfort of the surgical personnel, patients and to discourage the growth and transmission of microorganisms. Special low temperature requirements are provided in AHUs by providing a corresponding low temperature chilled water circuit.

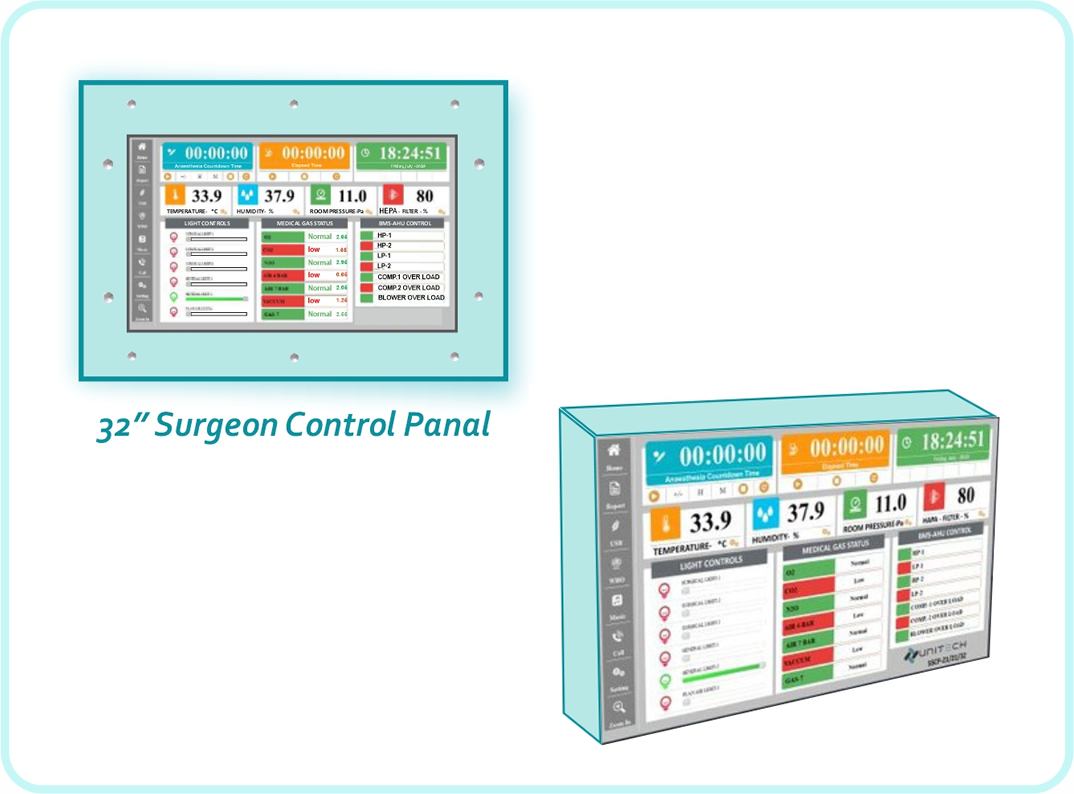

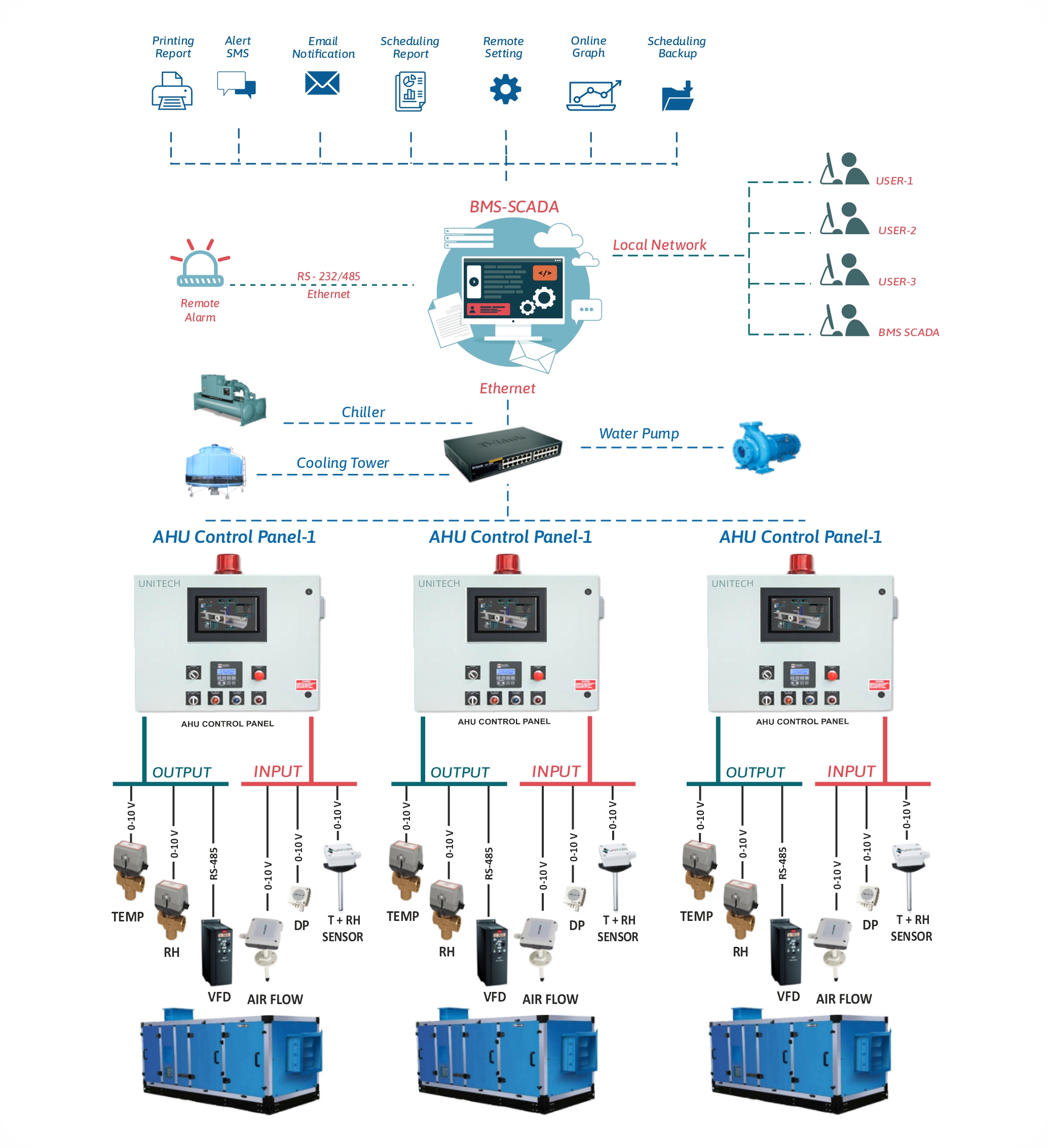

OT AHUs constantly supply Filtered Air Volume of 20-25 ACH and Active Monitoring of Pressure is provided thru Pressure Display Monitor on our Controller . Humidity and Temperature Sensors are provided in the return air duct for System Control. OT AHU is provided with VFD to allow to cater for HEPA Filter Loading.
